MLV (Mass Loaded Vinyl)

Used in acoustic paneling MLV is made up of rubber. Its function is to cut down noise transmission. It is easy to install, all one has to do is to paste it across ceiling, walls or floors. MLV comes as a roll of sheet which can be easily cut through a pair of scissors, knives of cutter. This product of HV Acoustic provides noise isolation in ant place by just putting it on.

Advantages.

  • High density product leading to high acoustic insulation.
  • Roll form which makes it easy to handle.
  • Flexible, easy to install on most of the surfaces.
  • Thermal resistance leading to high heat insulation.
  • Can be pasted with the help of adhesive or nails.
  • Excellent ageing resistance.

Measurements.

  • Materials: Made up of compound.
  • Finish: Smooth finish.
  • Max. Dimensions: Length-10 mt.
  • Thickness: 3mm, 4mm, 5mm.
  • Width: 1.2 mt.
  • Density: 1900 kg/m.
  • Dimensions stability: 0.4%.
  • Flame spread: Class 1.
  • Flexibility 10mm Mandrel Test: Pass.

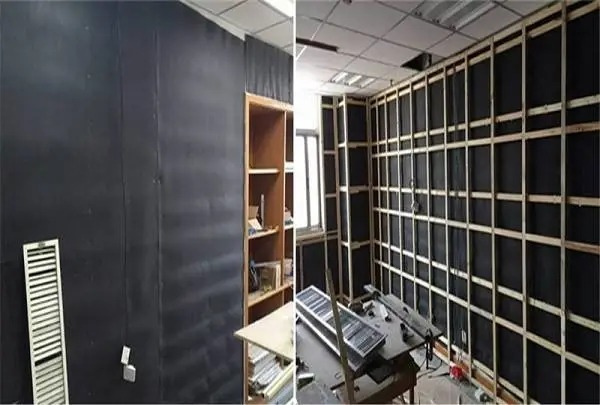

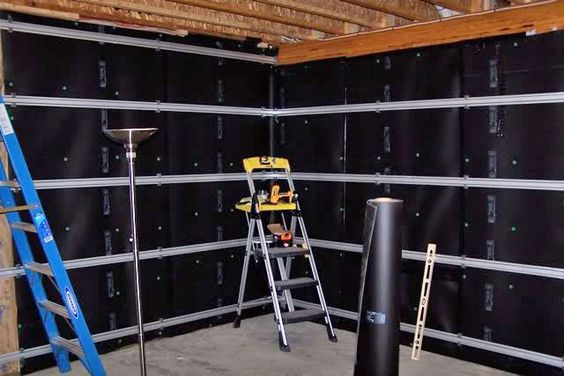

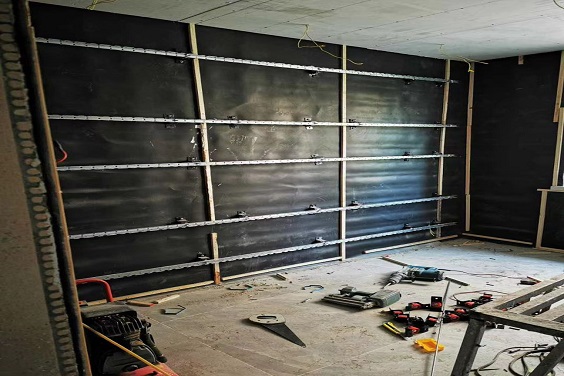

  • Installation: Glued, nailed, stapled or can be hung like the curtain.

More Information

Product Thickness Roll Size STC (ASTM E-413) Weight
MLV 3mm 1.2 x 10m 27 60 Kg
MLV 5mm 1.2 x 10m 32 100 Kg
MLV 8mm 1.2 x 10m 36 160 Kg
MLV 10mm 1.2 x 10m 40 197 Kg
MLV 12mm 1.2 x 10m 45 236 Kg

Sound Transmission Class

Frequency 100 125 160 200 250 315 400 500 630 800 1000 1225 1600 2000 2500 3150 4000
Db Value 8 12 15 20 23 30 37 40 42 48 49 54 55 57 58 58 56

STC: 36
